泥浆不落地回收处理装置

Mod non landing recovery processing device

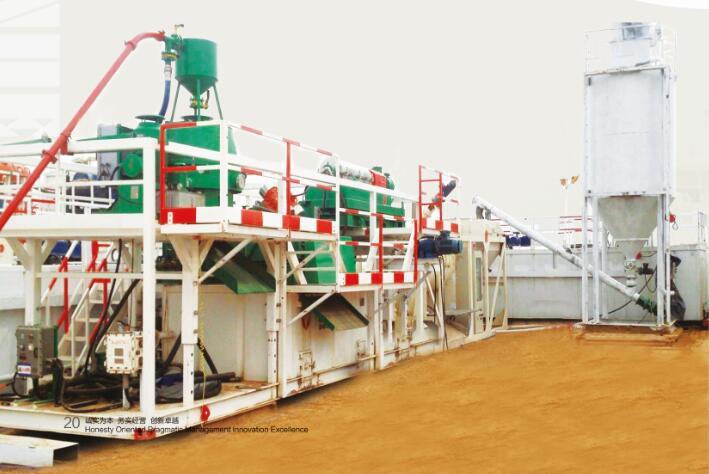

本系统完全可以满足随钻处理的要求，振动筛、除砂器、除泥器排出的废弃物由螺旋输送机输送到钻屑甩干机中进行脱水处理，钻屑甩干机排出的固相进入岩屑箱，液相进入干燥筛，干燥筛排出的固相进入岩屑箱，液相进入离心机，离心机排出的废弃物由螺旋输送器送到混干机进行干燥处理，排出的固相进入岩屑箱，液相进入储备罐。

The system can meet the requirements of drilling.Waste discharged byshaker desander and desilter is transported to the drill chip drier by the screw conveyor for dehydration treatment.Solid phase of the drilling cuttings removal machine enters the debris box,liquid phase enters the dryng sieve, solid phase discharged by drying sieve enters into the debris box, liquid phase discharged into the centrifuge, waste discharged from the centrifuge is sent to the mixer for drying by the screw conveyor, discharge of solid enters into the debris box,and liquid enters into the storage tank.

技术特点

TECHNICAL FEATURES

◆　随钻即时处理废弃钻井液（钻屑），能够达到不落地要求。

◆　全钻井处理过程不排放废水废液，钻井过程中随钻即时处理废弃钻井泥浆、井场废水，经处理后的水可以供井队循环使用，完井后处理水可一次性达标排放。

◆　将废弃钻井泥浆（钻屑）中的固体物随钻即时处理为较干的泥饼和碎渣，已达到无害化，可直接铺于井场或井场道路，也可再回收利用。

◆　immediate disposal of waste drilling fluid (cuttings) while drilling,which can meet the requirement of no land.

◆　The drilling process does not discharge waste water, and waste drilling mud and well-field waste water are treated in the drilling process. The water after treatment can be used by the drilling team for recycling and the treatment water after completion can meet the standard discharge at one time.

◆　The solid substance in the waste drilling mud (drilling cuttings) can be treated immediately into dry mud cake and slag, which has been harmless and can be directly paved in the well site or the wellsite road, and also can be recycled.
